VM7-Mainboard
Starting at
Description:

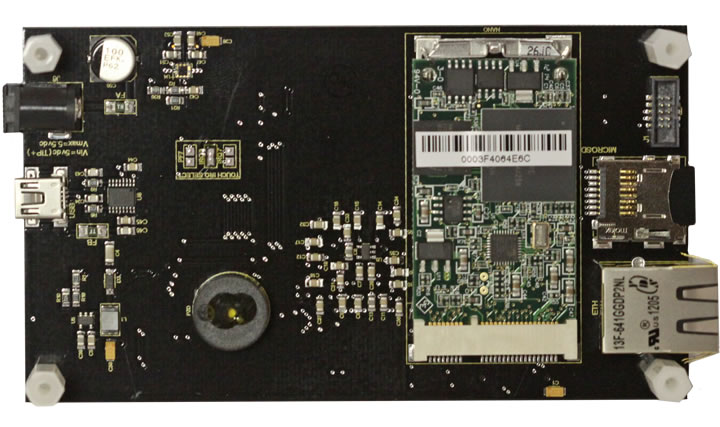

The VM7 Mainboard works in conjunction with Netburner’s NANO54415 Ethernet Core Module.
Together they form a complete production ready networking platform with 4.3” TFT LCD touch screen.
The VM7 is one of the fastest ways to get your product to market. This production ready board can be placed into your own custom enclosure thereby giving you a complete product. If you need additional sensors or to communicate with other devices, there is a 10 pin keyed "socket" header on the back of the unit that provides SPI, I2C, #RESET, IRQ & 3.3v power and ground signals. As this is a touch screen, there is no need for mechanical buttons. You can easily create your own soft buttons, and place then anywhere on the screen. By using the SX8655 touch screen IC, you are not bound by using a touch pen. You can now also use your fingers instead. You can even use the drag and drop features. Source code for demo is provided with purchase.
Look at our Accessories page to get additional items for this Mainboard such as AC/DC 5v power supply or cables.
Features:

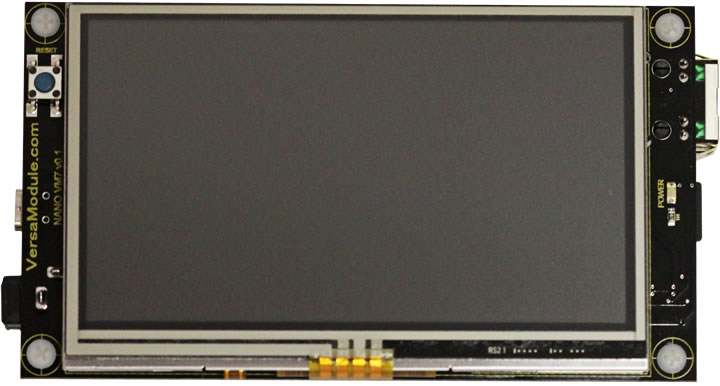

- 4.3” Color LCD with Touch Screen
- 480x272 Resolution
- Nano54415 module socket
- 10/100 BaseT Ethernet
- DC 4.0 - 5.5V power input
- Onboard 3.3v switching power supply @1A
- Front panel reset button
- Mini USB
- MicroSD card slot
- 10 pin “Socket” Header for access to peripheral I/O signals
- Board size 4.82” x 2.72”
Documentation & Interest:

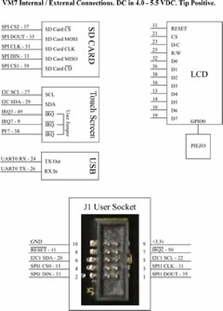

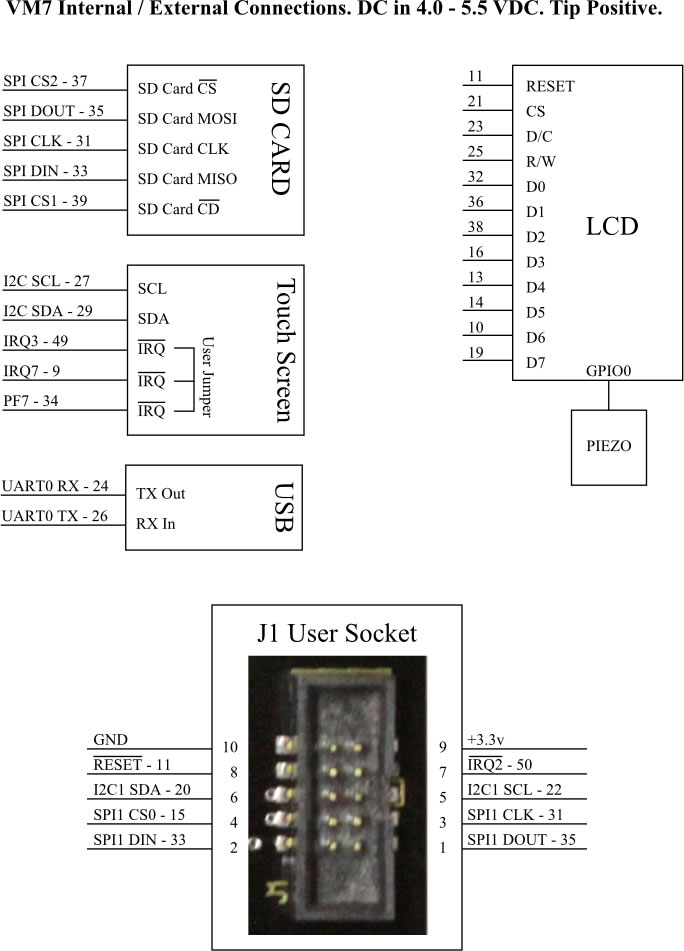

- VM7 Internal / External Connection Map
- VM7 Board size Dimensions
- Touch Screen Data Sheet
- VM7 Demonstration Video
- VMGraphix Software Demo Videos
